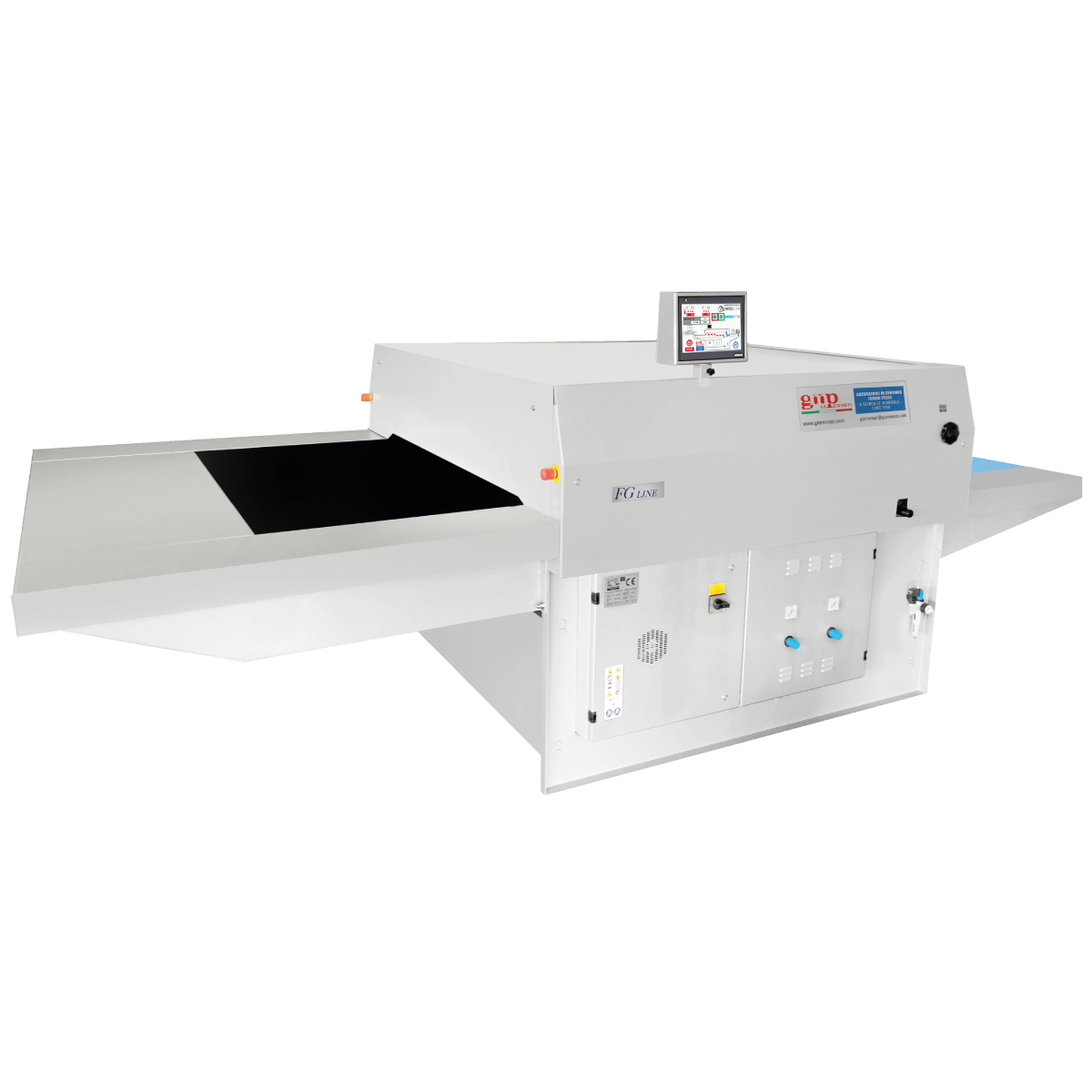

Gi.emme.pi FG Gluing Press

High quality gluing machine for clothing, outerwear, shirts and leather goods.
The machine is available with belt widths of 1000-1200-1400-1600 mm.

It has a 140 cm long work area, which allows multiple operators to load the pieces to be heat-sealed. It is equipped with a work surface section and a belt section that easily receives the parts to be introduced into the machine. The transport system consists of a lower belt and an upper belt, made of fiberglass with antistatic treatment, Teflon-coated. Compensating rollers guide the belt, excluding the formation of folds and waves.

The 1150 mm long heating surface is made up of a series of 8 laminated profiles that form curved panels.

The pressure system can be single or double.
The graphite Teflon scraper bars allow the total detachment of the outgoing pieces, finally the cooling station ensures that the pieces that must be unloaded manually or automatically cool down in such a way as not to leave marks or markings. The machine is equipped with continuous manual upper and lower cleaning, by means of a removable pad and sock.

Strengths

The advantages of buying FG:

• 100% Made in Italy.
• High quality of adhesion.
• Separate regulation of heating zones.
• Special insulated heating elements with minimal energy waste.
• Rapid temperature change.
• Excellent quality of materials used for construction that require minimal maintenance.
• Cleaning system with removable sock for both the lower and upper belt and Teflon scrapers.
• 10" touch screen (optional).
• Energy saving (optional).
